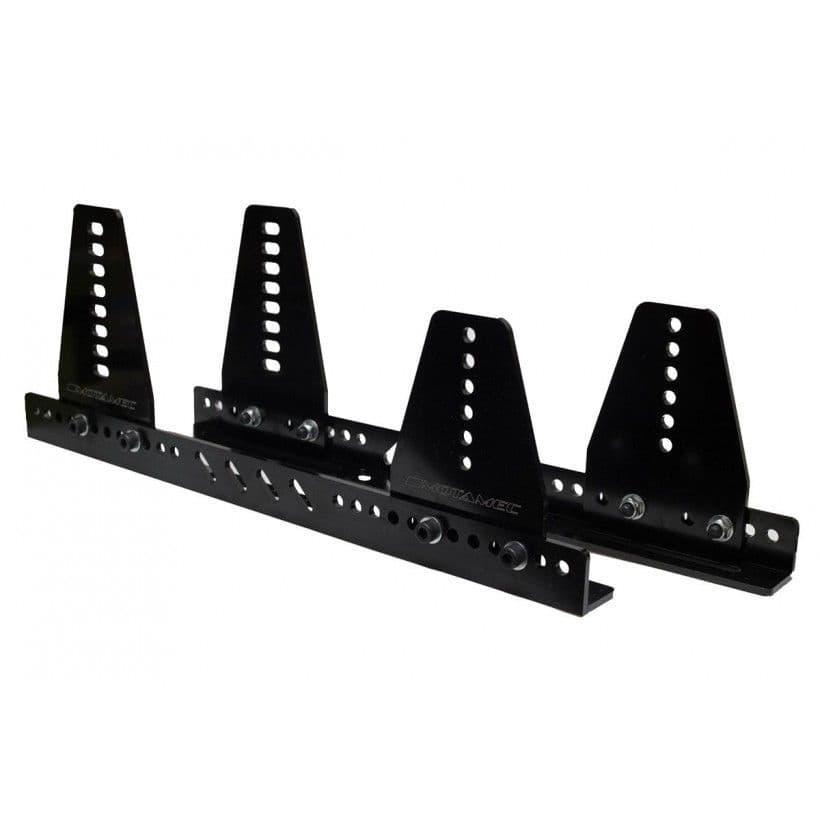

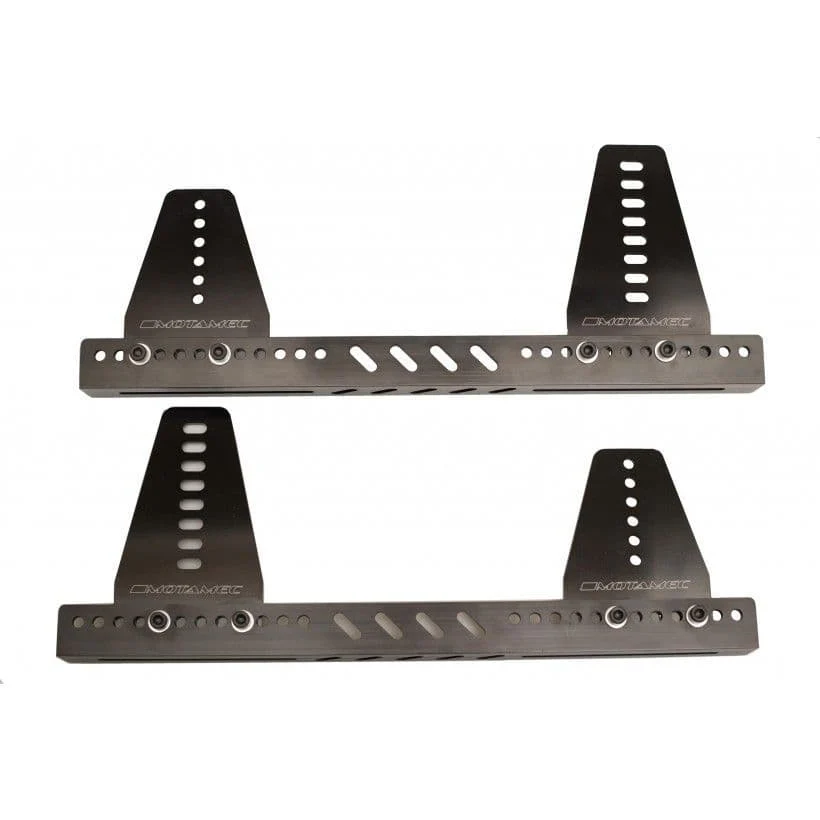

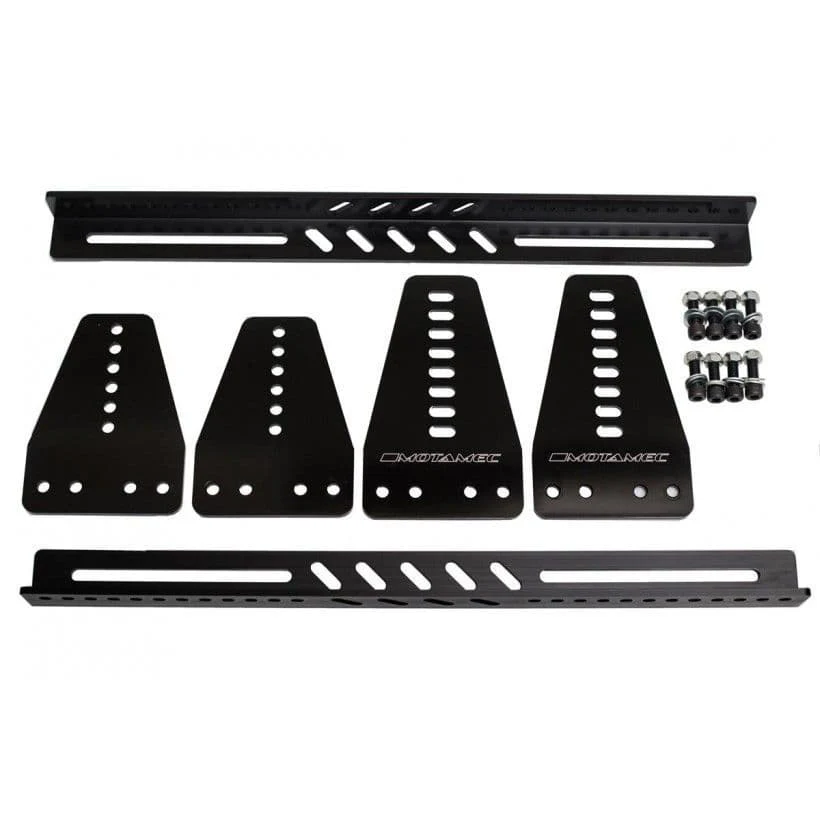

MOTAMEC ALLOY SIDE SEAT MOUNTS 6 PIECE MOUNTING BRACKETS - UNIVERSAL SPARCO OMP

Motamec universal alloy 6 piece side mounting seat brackets - 5mm alloy.

Universal fitting, fits most side mount race seats - Sparco, OMP, Cobra, MOMO, Corbeau etc.

Slotted adjustment lower bracket, for fine seat adjustment
Black anodised finish
Sold in pairs (one seat kit)

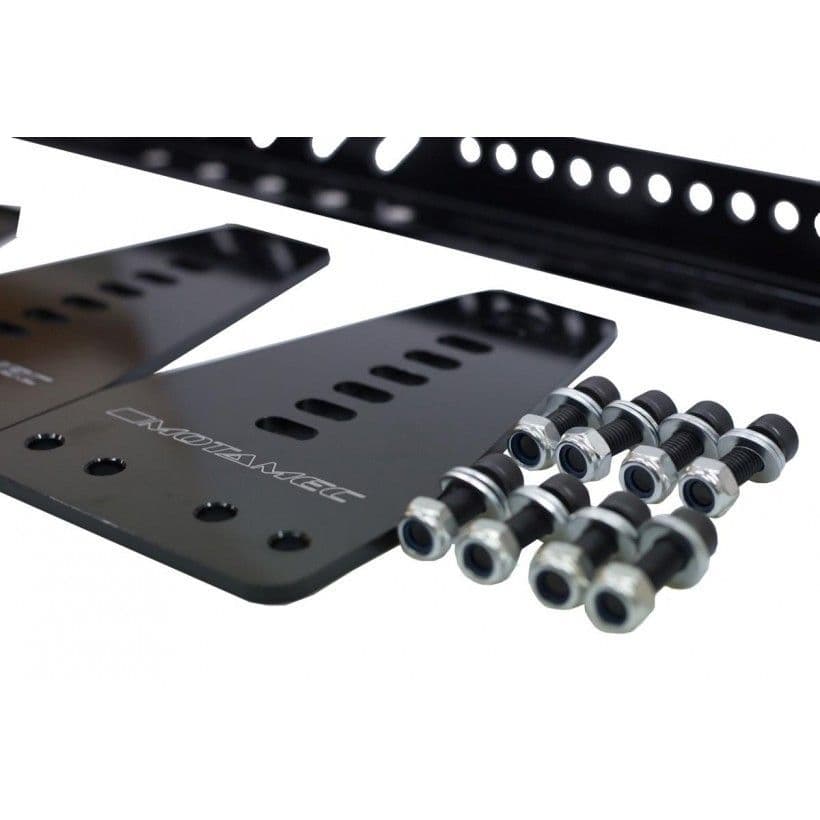

High tensile socket cap bolts, nuts and washers included

Dimensions.

515mm is the full length of the item.

maximum distance of mounting to seat rails: 460mm

Minimum distance to mounting to seat rails: 150mm

Centre to centre measurements of side mounting bracket holes:

Maximum: 485mm

Minimum: 154mm

Uprights

The smaller with round holes:

Overall height: 150mm

Centre to centre mounting holes height: Max 120mm / Min 45mm

Larger with elongated holes:

Overall height: 185mm

Centre to centre mounting holes height: Max 150mm / Min 45mm
