DEATSCHWERKS 550CC INJECTORS - NISSAN SILVIA S14 / S15 SR20

Fitments:

Nissan 200SX (94-01)

Nissan Pulsar N14 (90-94)

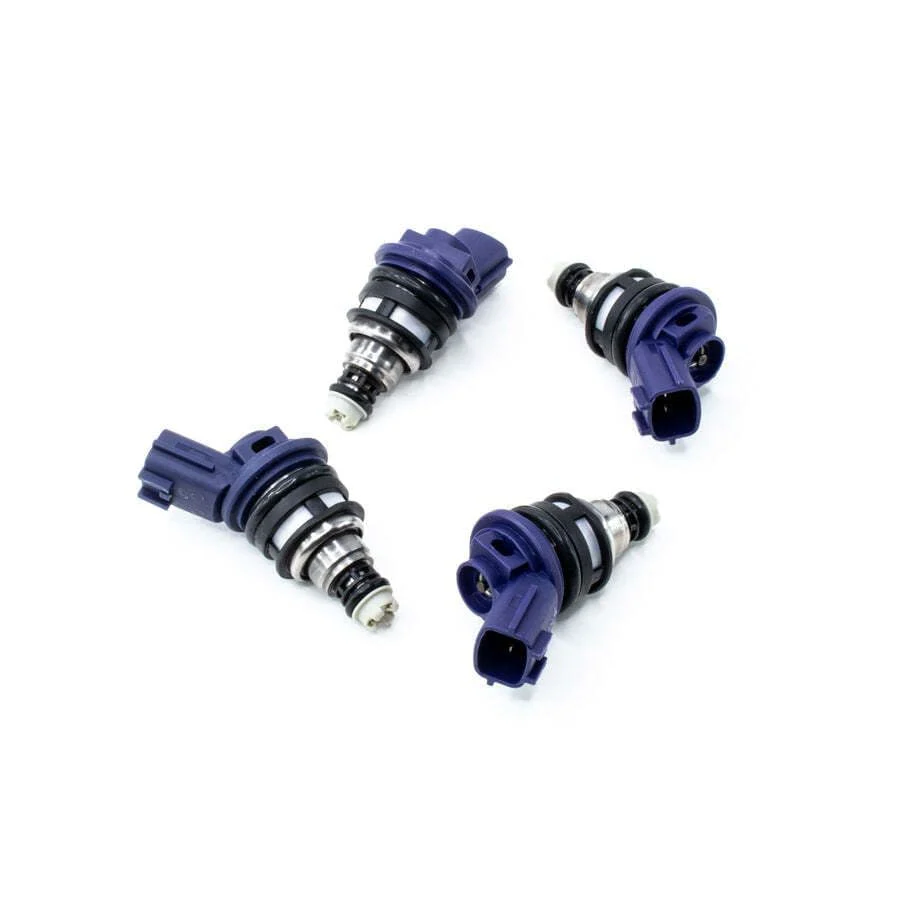

Set of 4 550cc side feed injectors

All DeatschWerks injectors feature the following:

E85 compatibility

Flow rates and set balancing in-house by DeatschWerks

Flow balanced to within 1-2% (flow report included)

Excellent spray pattern and atomization for optimized idle and tuning

Technical assistance and tuning data available via phone or email

3-year comprehensive warranty

Matched set of 4 injectors 550cc/min

Fuel Pressure Range 40-90 psi

Minimum Pulse Width 1.2 ms

Maximum Duty Cycle 92%

Coil Impedance 11.4 ohm

Injector Type JECS Side Feed

Connector Type JECS Nissan

Nominal Static Flow Rate

PSI > 43 58 70 80 90 100

cc/min 543 634 698 749 793 837

lb/hr 51.7 60.4 66.5 71.3 75.5 79.7

Please note: Flow rates listed are the nominal (normal minimum) rates for this injector part number. All sets are flow balanced. For actual flow rates of your set, please refer to the flow report that will accompany your order.
