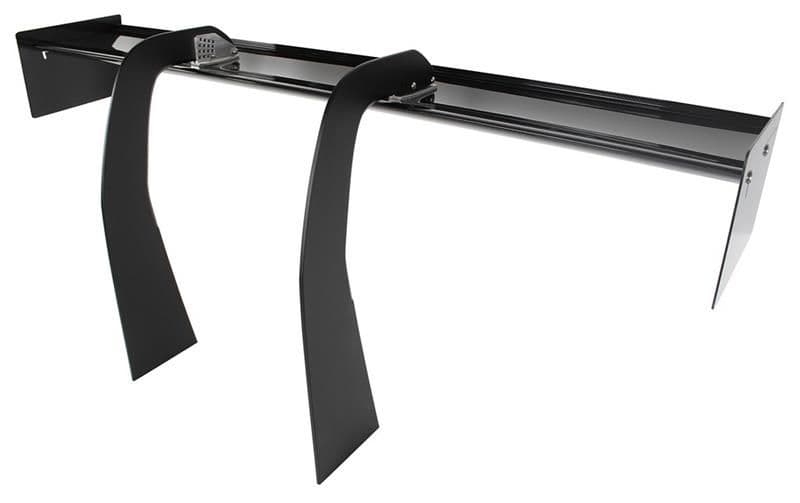

APR GT-250 SWANNECK 71" WING UNIVERSAL

Spanning up to 71 inches over its optimized 2D airfoil shape, the APR Performance GTC-250 Adjustable Wing Swan Neck supplies maximum downforce in widebody sports and touring car applications. Swan Neck mounting maximizes effective airfoil surface area and minimizes flow separation.

BENEFITS

• More downforce than the GT-250 standard pedestal version
• Angle adjustment holes allow for easy tuning of downforce
• Reinforced pre-preg carbon fiber withstands extreme loads

SPECIFICATIONS

• Pattern  2×2 twill weave
• Material  Pre-preg carbon fiber, 3K
• Coating  UV-stable clear coat
• Wing Measurement  Custom span Up to 71, 10 chord
• Hardware  Stainless-steel machine screws, washers, and nuts
• Mounting
  • 6061 billet aluminum brackets/pedestals (no mounting bases included), custom fabrication of chassis-mounts required (double-shear recommended)
  • Swan neck pedestal dimensions: 32 overall height x 13.5 overall width x 3/8 thickness
  • Standard swan neck pedestal-to-pedestal length: 23 (custom lengths can be accommodated up to 50)

FEATURES

• The APR Performance GT-250 Adjustable Wing Swan Neck features a 2D airfoil shape that is designed to produce great downforce with minimal drag. Swan neck pedestals prevent downforce-robbing flow separation commonly found in standard bottom-mount pedestals. The swan neck design allows greater Angle-of-Attack (AOA) before stalling occurs, when compared to standard bottom-mount pedestal configurations.
• The GT Series airfoil is composed of lightweight and durable pre-preg carbon fiber composite materials for superior strength and low weight. For the swan neck application, the airfoils are internally reinforced differently from the non-swan neck airfoils.
• Supporting the airfoils are 10mm aircraft grade 6061 billet aluminum swan neck pedestals that come in a flat black powder coat finish. Each swan neck pedestal is also knife-edged at the trailing edge, to minimize the amount of dirty air that reaches the airfoil.

• Note:* Upper brackets shown in photos are raw aluminum (for illustration purposes only). All production units come powder-coated in black color (same as the pedestals).

GURNEY FLAPS
Gurney flaps are included with every APR Performance GT-250 Adjustable Wing. These are super lightweight, made using pre-preg carbon fiber processes, and pre-attached using double-sided tape.

Computational Fluid Dynamics (CFD)
Modeled in 3D and validated using Computational Fluid Dynamics (CFD), the APR Performance GT-250 Adjustable Wing is designed to adapt to a variety of widebody sports and touring car applications.
